How to call Procedure function in UI page

-



Procedure call

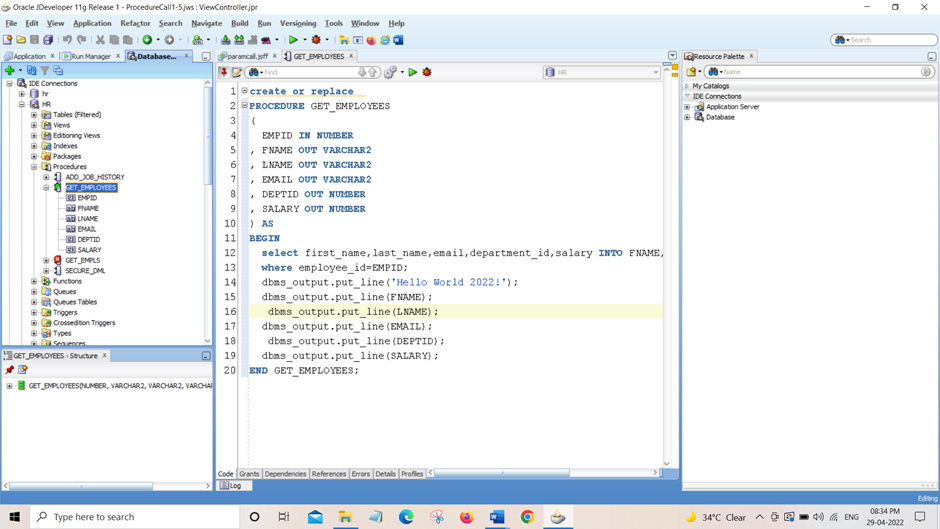

First we need to call procedure  query in HR connection we have a column as procedures in that we have create GET_EMPLOYEES in that run this query.


-------------------------- ------------------------------------------------ --------------------------------------------



create or replace

PROCEDURE GET_EMPLOYEES

(

  EMPID IN NUMBER

, FNAME OUT VARCHAR2

, LNAME OUT VARCHAR2

, EMAIL OUT VARCHAR2

, DEPTID OUT NUMBER

, SALARY OUT NUMBER

) AS

BEGIN

  select first_name,last_name,email,department_id,salary INTO FNAME,LNAME,EMAIL,DEPTID,SALARY from employees

  where employee_id=EMPID;

  dbms_output.put_line('Hello World 2022!');

  dbms_output.put_line(FNAME);

   dbms_output.put_line(LNAME);

  dbms_output.put_line(EMAIL);

   dbms_output.put_line(DEPTID);

  dbms_output.put_line(SALARY);

END GET_EMPLOYEES;



----------------  ------------------------------- ----------------------------------------------------------------------------

We have to create new application




We need to create application module in business component table






Generate classes






This code for AMimpl class



import java.sql.CallableStatement;

import java.sql.SQLException;

import java.sql.Types;



import java.util.ArrayList;



import model.common.AppModule;



import oracle.jbo.JboException;

import oracle.jbo.server.ApplicationModuleImpl;

import oracle.jbo.server.DBTransaction;











    public ArrayList callStoredProcOutParam(oracle.jbo.domain.Number EMP_ID) {

        ArrayList <String> Emplist = new ArrayList<String>();

    String Fname;

    String Lname;

    String Email;

    String DeptID;

    String Salary;





    DBTransaction trx =(DBTransaction)getTransaction();

    CallableStatement st = null;

    try  {

    // 1. Define the PL/SQL block for the statement to invoke

    String stmt = "begin GET_EMPLOYEES (?,?,?,?,?,?); end;";

    // 2. Create the CallableStatement for the PL/SQL block

    st = trx.createCallableStatement(stmt,0);

    // 3. Register the positions and types of the OUT parameters

    st.registerOutParameter(2,Types.VARCHAR);

        st.registerOutParameter(3,Types.VARCHAR);

        st.registerOutParameter(4,Types.VARCHAR);

        st.registerOutParameter(5,Types.VARCHAR);

        st.registerOutParameter(6,Types.VARCHAR);



    // 4. Set the bind values of the IN parameters

    st.setObject(1,EMP_ID);



    // 5. Execute the statement

    st.executeUpdate();

    //6. Set value of _xErrCode  property using first OUT param

    Fname =  st.getString(2);

    Lname =  st.getString(3);

    Email =  st.getString(4);

    DeptID = st.getString(5).toString();

    Salary = st.getString(6).toString();



        Emplist.add(Fname);

        Emplist.add(Lname);

        Emplist.add(Email);

        Emplist.add(DeptID);

        Emplist.add(Salary);





    //7. Set value of _xErrMsg property using 2nd OUT param



    // 8. Return the result

        return Emplist;

    } catch (SQLException e)  {

                                 throw new JboException(e);

    } finally  {

    if (st != null) {

    try {

    // 9. Close the JDBC CallableStatement

    st.close();

    }

    catch (SQLException e) {

    e.getStackTrace();



    }

    }

    }







Now we need to move this method in client inter face in right side








Move to right side (Array List)




Now cerate Method bindings for CallStroedProcOutParam, in Bindings

In UI page right click & select go to Page Definition.






Select here Method Action





Click on ok

Save all then Run App Module





Give value here as empid, then hit the Execute button




Now it shows the Return value






Put the input text in our UI page






Here one in put and one button five out put texts drop in our UI page









Create bean for the Execute button as Action Listener






















Code for Button bean



 ---------------------- ---------------------------------------------------------



   private String EmpId;

    private String fname, lname, email, deptid, salary;



    public void buttonClicked(ActionEvent actionEvent) {

        // Add event code here...

        BindingContainer bindings = getBindings();

                        OperationBinding operationBinding =

                        bindings.getOperationBinding("callStoredProcOutParam");

                       operationBinding.getParamsMap().put("EMP_ID",this.EmpId);

                    operationBinding.execute();

        ArrayList<String> Emplist1 = (ArrayList<String>)operationBinding.getResult();

        //                        String[] result = (String[])operationBinding.execute();



        this.setFname(Emplist1.get(0));

        this.setLname(Emplist1.get(1));

        this.setEmail(Emplist1.get(2));

        this.setDeptid(Emplist1.get(3));

        this.setSalary(Emplist1.get(4));

        }

        public BindingContainer getBindings() {

        return BindingContext.getCurrent().getCurrentBindingsEntry();

        }



        public void setEmpId(String EmpId) {

        this.EmpId = EmpId;

        }



        public String getEmpId() {

        return EmpId;

        }



        public void setFname(String fname) {

        this.fname = fname;

        }



        public String getFname() {

        return fname;

        }



        public void setLname(String lname) {

        this.lname = lname;

        }



        public String getLname() {

        return lname;

        }



        public void setEmail(String email) {

        this.email = email;

        }



        public String getEmail() {

        return email;

        }



        public void setDeptid(String deptid) {

        this.deptid = deptid;

        }



        public String getDeptid() {

        return deptid;

        }



        public void setSalary(String salary) {

        this.salary = salary;

        }



        public String getSalary() {

        return salary;

        }

----------------------------------------------------- --------------------------


Click on Generate Accessors, & Click on all boxes

Here it creates getter, seters for these values




Select input text go to property inspector select value select expression builder and select required column for input text field




Now pass the value to all input text in right side


Run the page


Here give empid then hit the Execute button for output value






FARHATH
