Declarative and Programmatic Popup

-



Declarative and Programmatic Popup

Now I am explaining about how to create Popup declarative and Programmatically.

First creating New Application.



I have developed model part Business Components

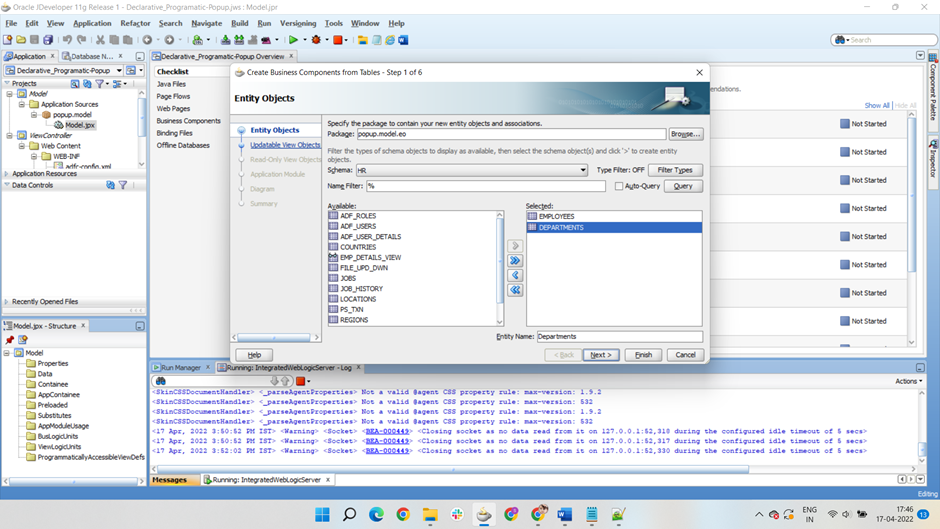

Select database schema HR


Entities


View Objects



Application Module


Refresh data controls

Coming to View Controller

Select view controller and right click new jsf – ADFTaskflow


Drag and drop one view in component pallet to give name as popup.jsff



Drag and drop employeeviewobject to UI in data control


Drag and drop one button to popup.jfss page in component pallet give name as popup

Drag and drop showpopupBehavior in button

Drag and drop one popup

Drag and drop one panel window in popup

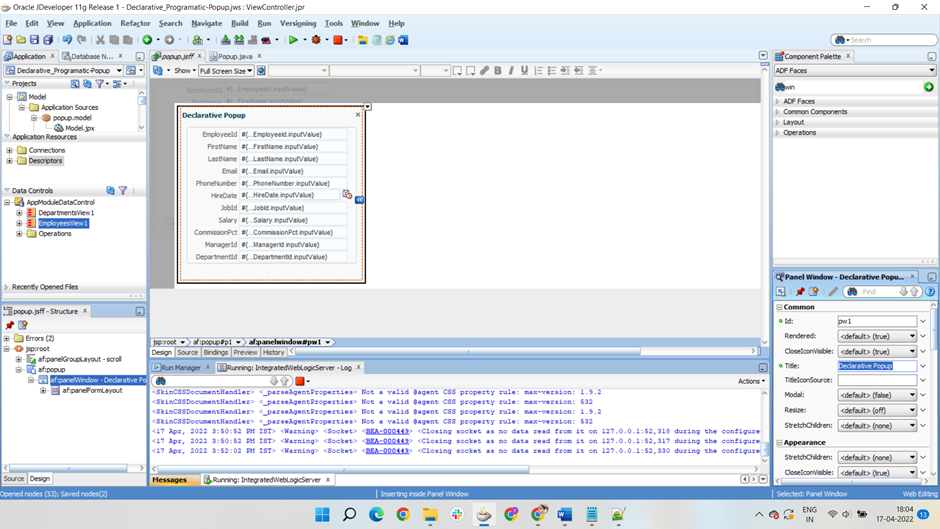

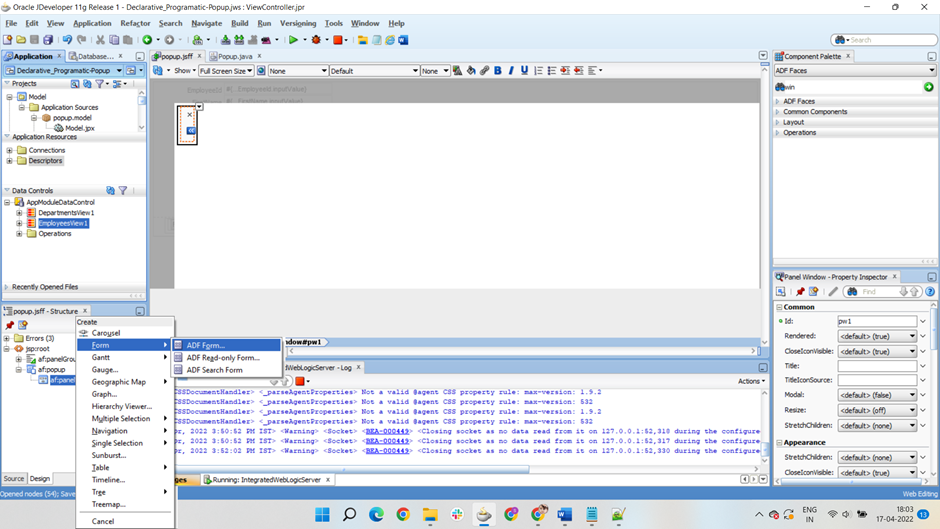

I am drag and drop employeesview1 in win as a form




I am giving popup id to showpopupBehavior component

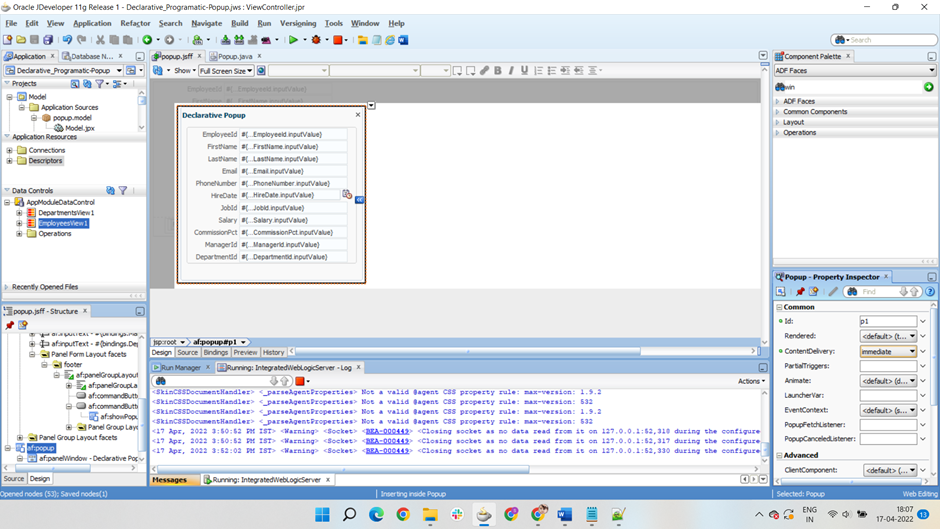

And give ContentDelivery : Immediate

Now create one main page drag and dorp to task flow in main





Then run for see output

This is Declarative Popup Output when I click popup button than opened popup


Here I am explain about how to open popup in Programatically

Create one more view page name as proPopup.jsff










Adding one button name as ProPopup



Create New Bean





I have drag and droped popup



Drag and drop panel window in popup



Giving binding in popup




Drag and drop departmentview in panel window as a form









public void proPopupButtonACL(ActionEvent actionEvent) {

        // Add event code here...

        RichPopup.PopupHints a = new RichPopup.PopupHints();

        this.getProPopupBinding().show(a);

    }

This is final output



                                                                                                                                                     Uma Devarakonda
